SPECIFICATIONS

Brand: Keenso

Item ID: KR590623

Material: Stainless Steel

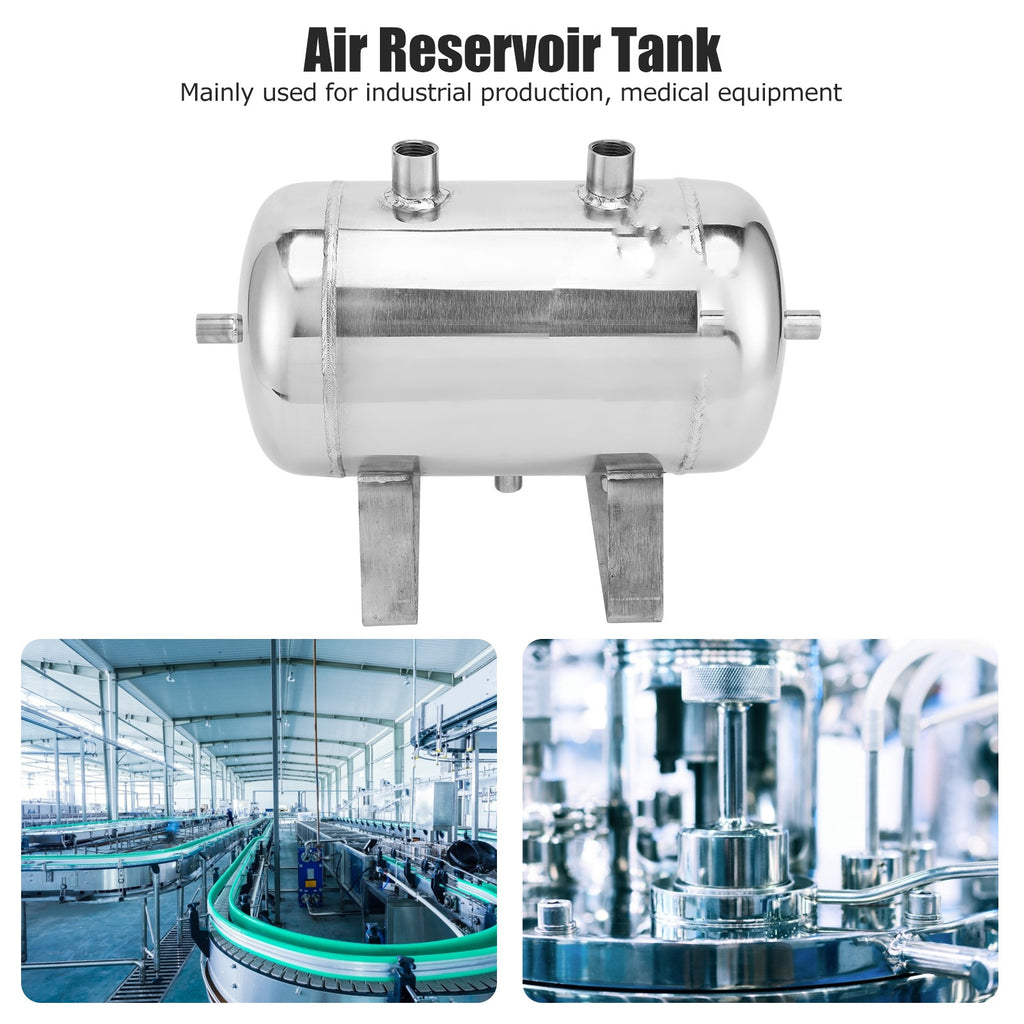

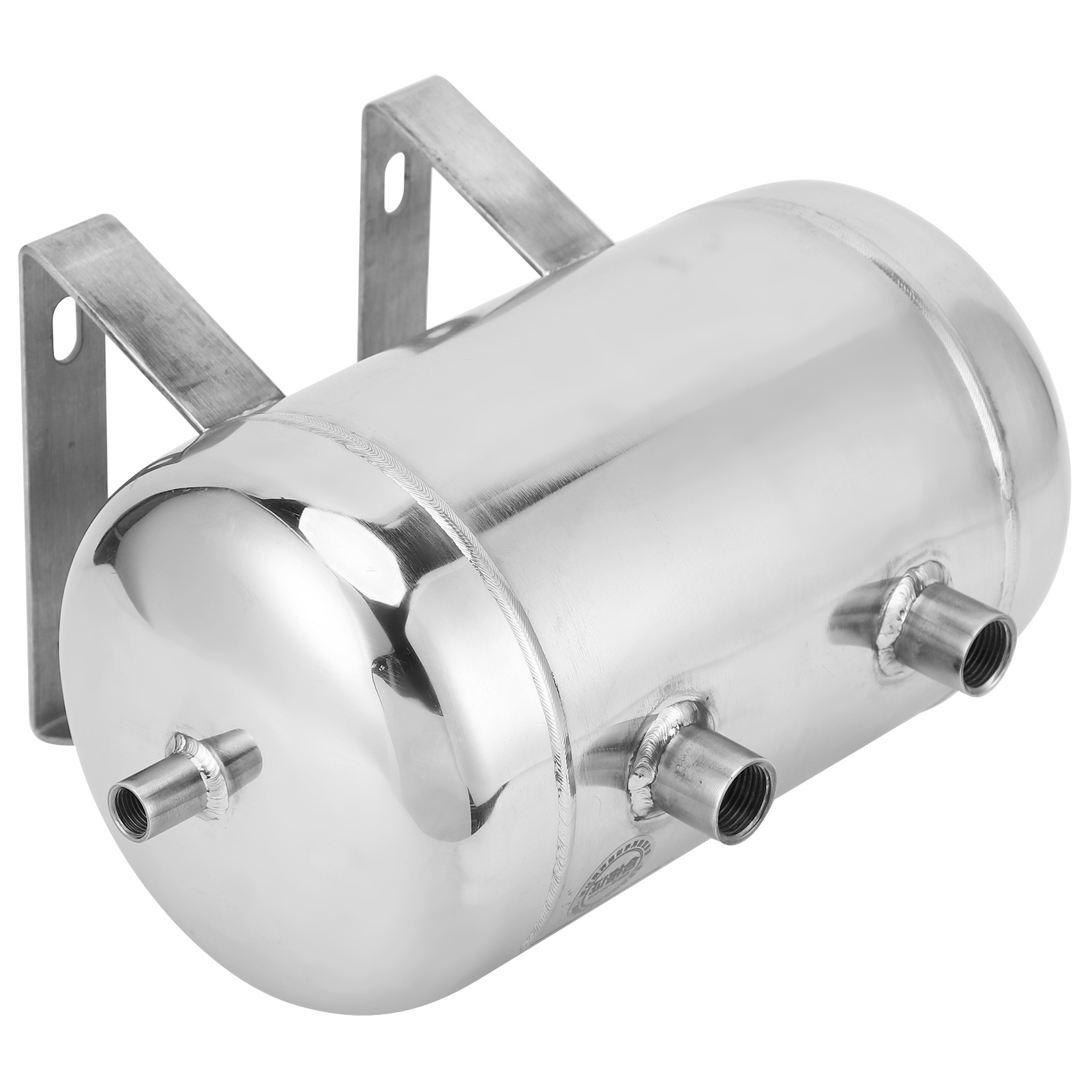

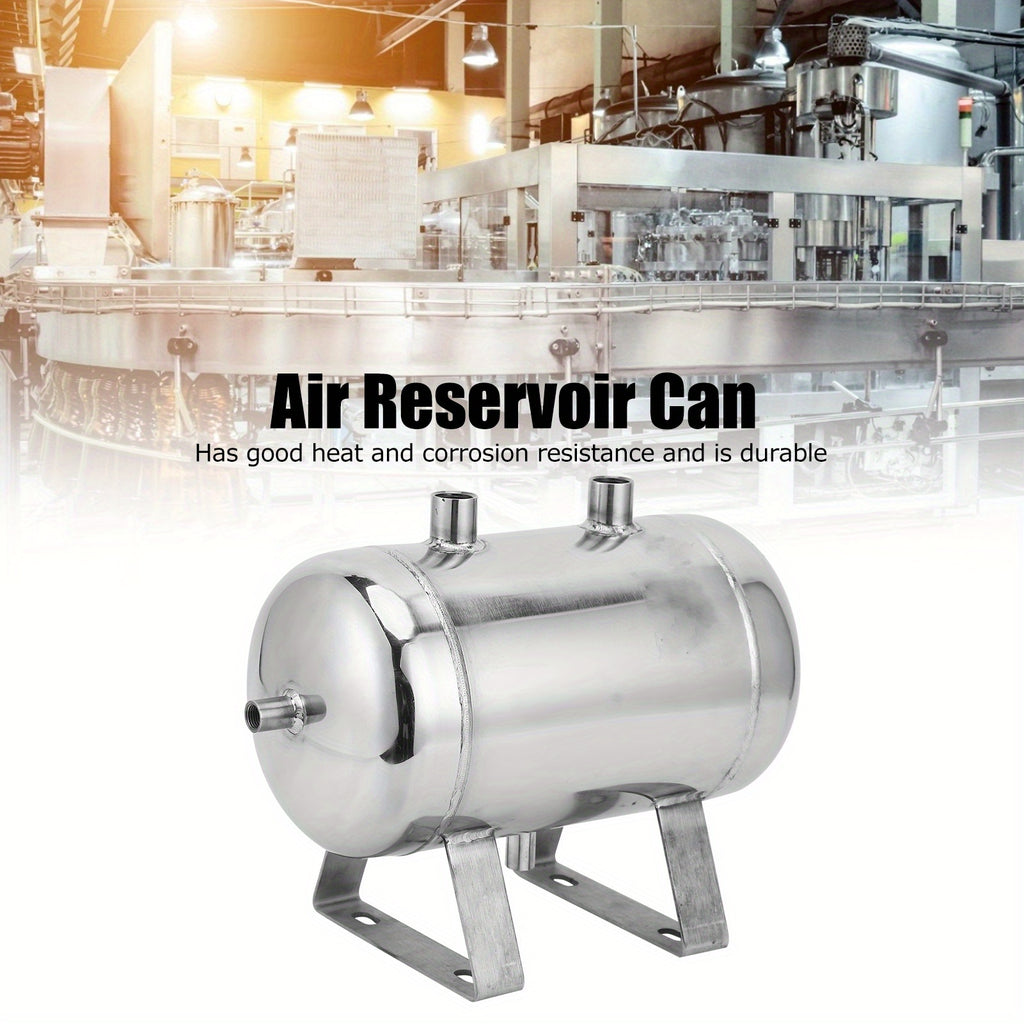

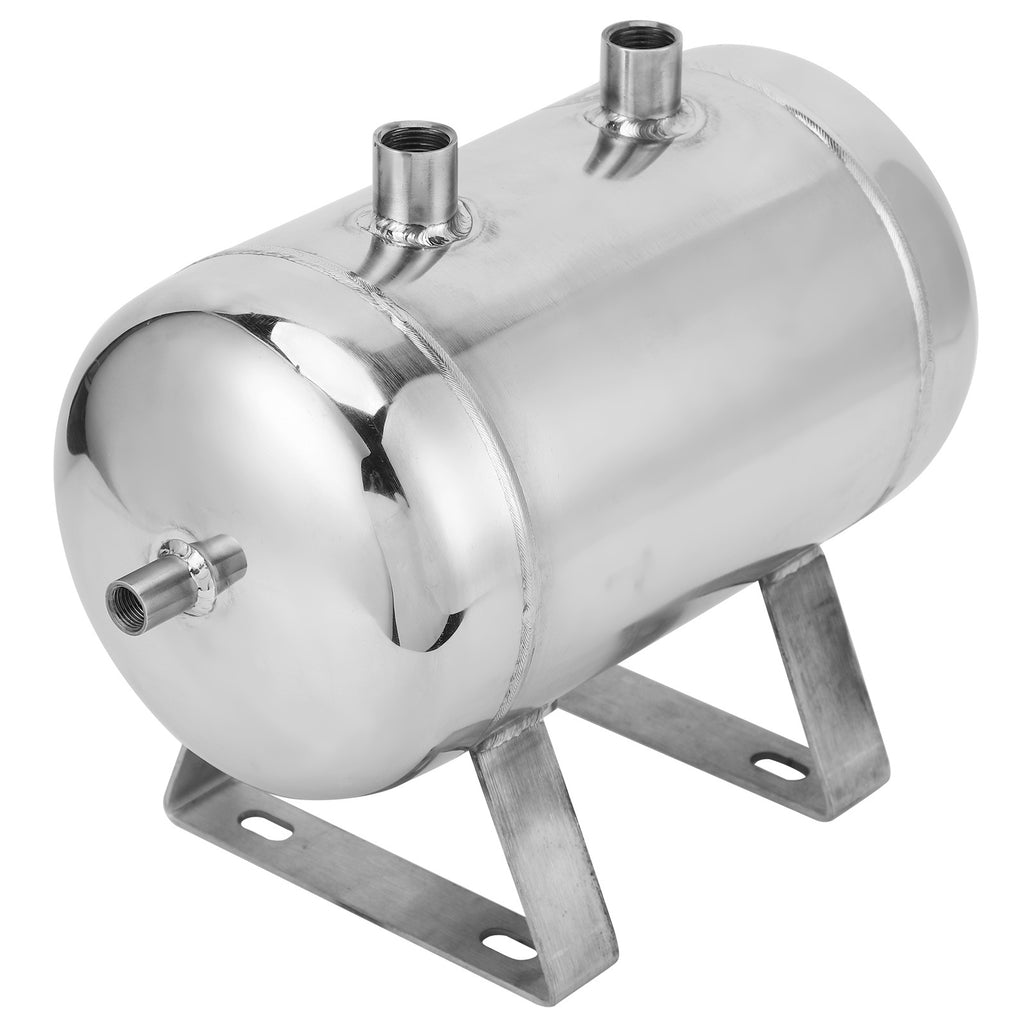

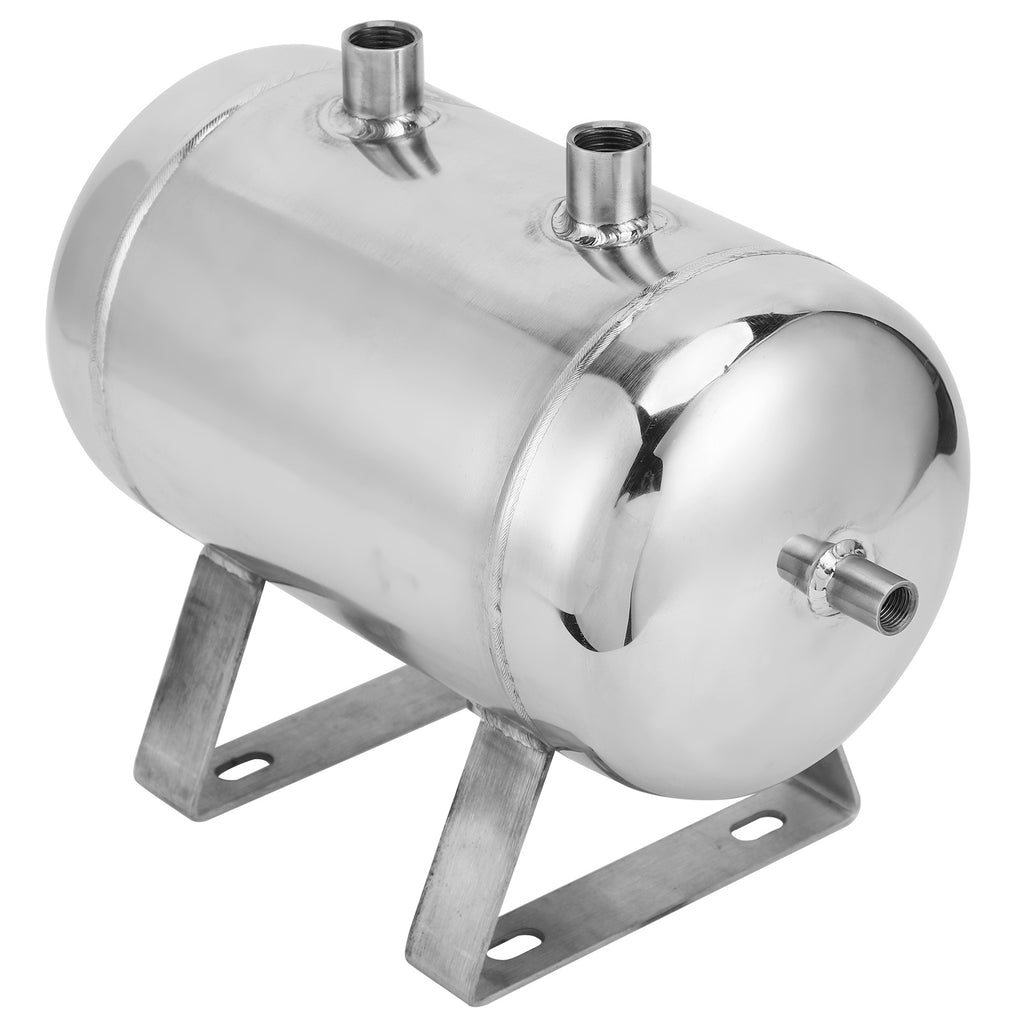

5L Steel Gas Storage Tank Air Reservoir Can 4-Port Container High Pressure 1/4NPT

Specification

Item Type: Steel Gas Storage Tank
Material: 304 stainless steel
Uses: Industrial production, medical equipment, automotive energy storage tank vacuum buffer tank
Capacity: 5L
Withstand Pressure: 1.25MPa
Medium: Air

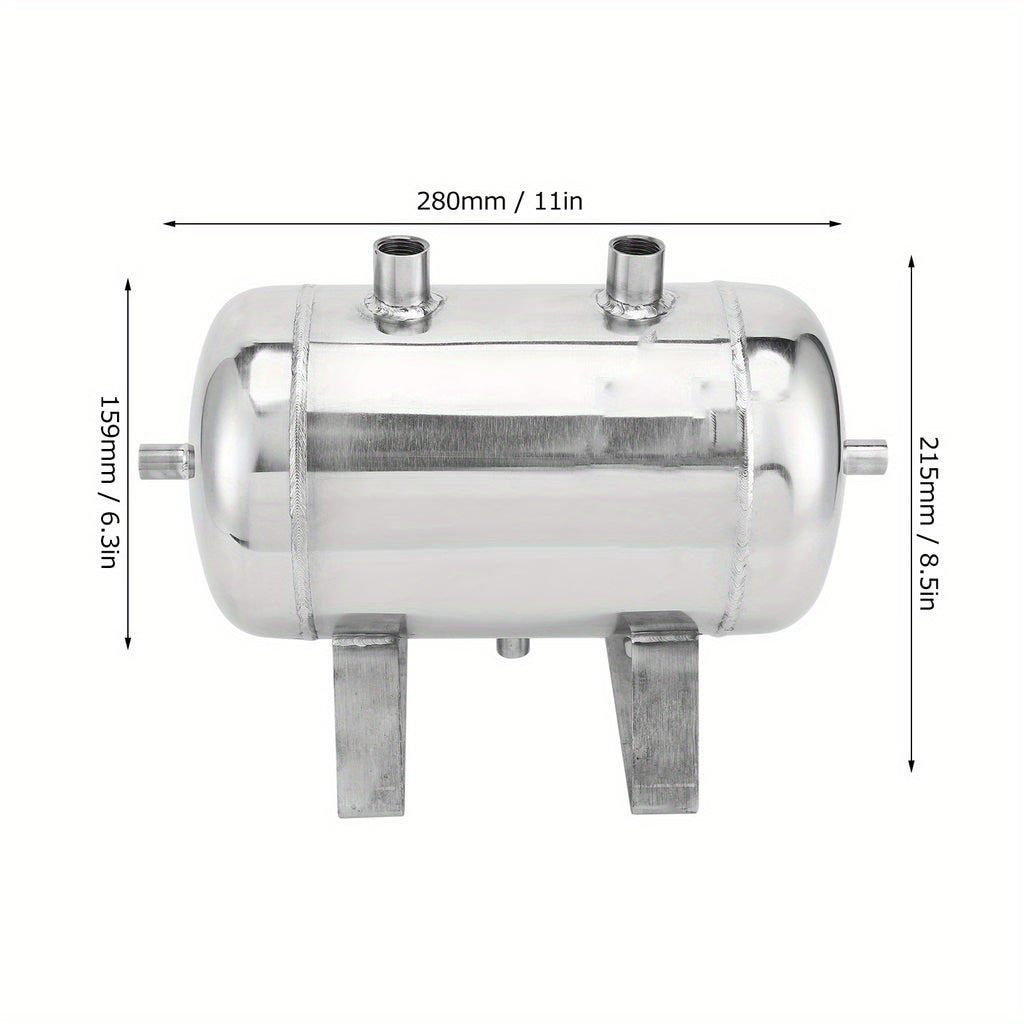

Tank Diameter: Approx. 159mm / 6.3in
Tank Length: Approx. 280mm / 11in
Height: Approx. 215mm / 8.5in

Top Through Hole Specification: Approx. 19.5mm / 0.8in
Head Through Hole Specification: Approx. 11.5mm / 0.5in
Bottom Through Hole Specification: Approx. 11.5mm / 0.5in
Instructions For Use:
1. The working pressure of the gas storage tank shall not be higher than the maximum working pressure of 1.25MPa, the user shall be responsible for the consequences caused by overpressure use

2. The gas storage tank is used in conjunction with the connecting parts (trachea joints, plugs, safety valves, pressure gauges, drain valves) and can only work after debugging

3. The use of simple pressure vessels (gas tanks) does not require registration for use, and does not require periodic inspections within the recommended service life. The gas tank after reaching the recommended service life (7-10 years) should be scrapped

4. The gas storage tank should be placed on a flat working surface to avoid cracks in the welded joint between the bracket and the simplified body during the vibration process, which may cause safety accidents

5. The shell of the gas storage tank should avoid external impact or extra heavy pressure, and avoid corrosive materials contacting the shell or working in a corrosive environment

6. The bottom drain valve of the gas storage tank should be opened regularly to drain the accumulated water to prevent corrosion inside the tank|.
7. After the gas storage tank is put into use, the gas storage tank shall not be excavated or repaired by welding

Package List

1 x Steel Gas Storage Tank
