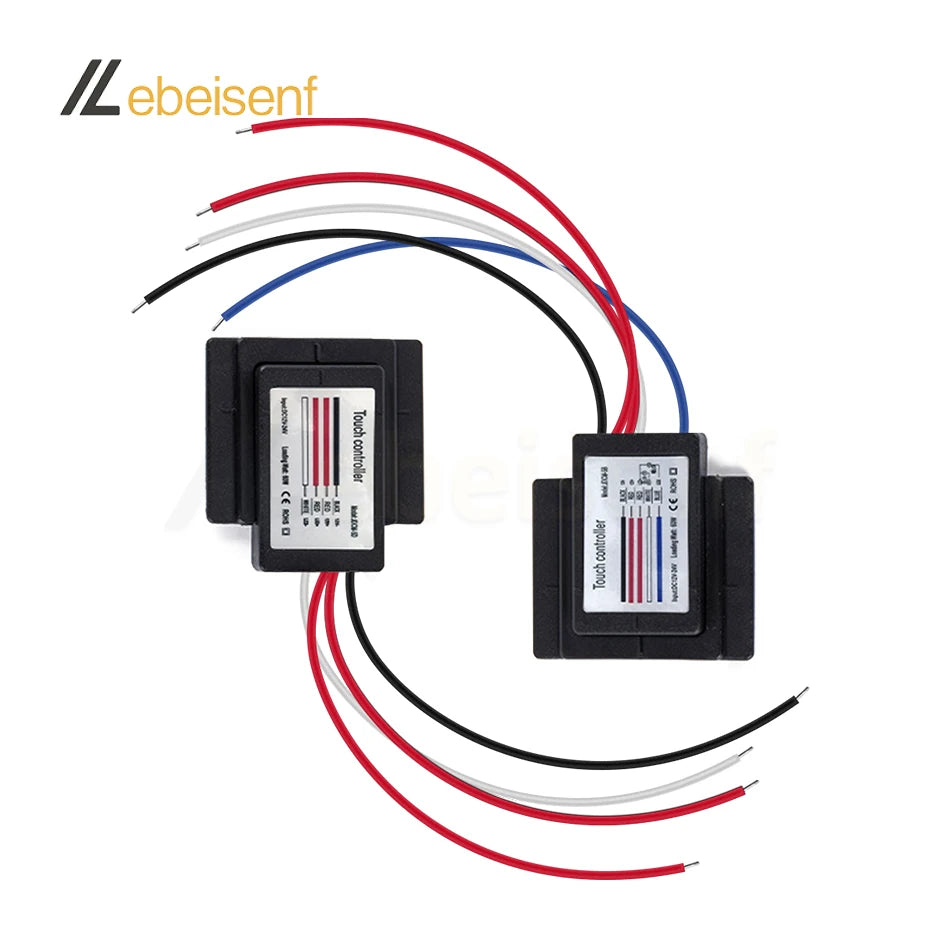

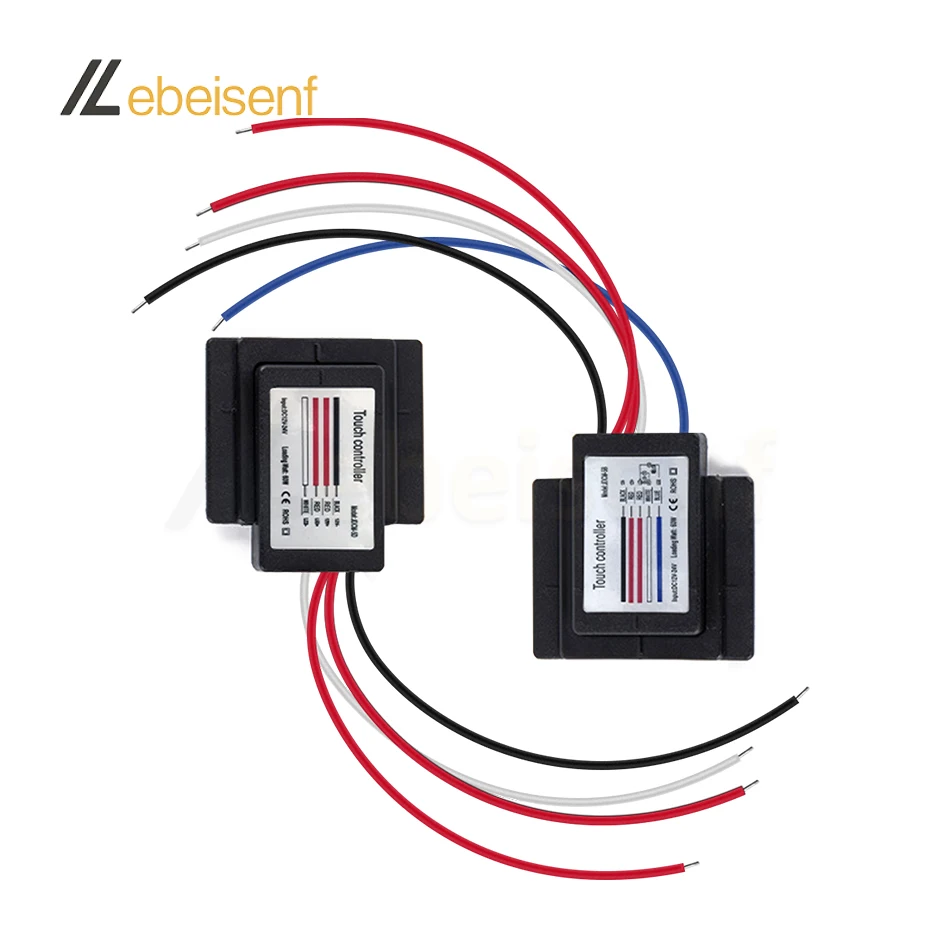

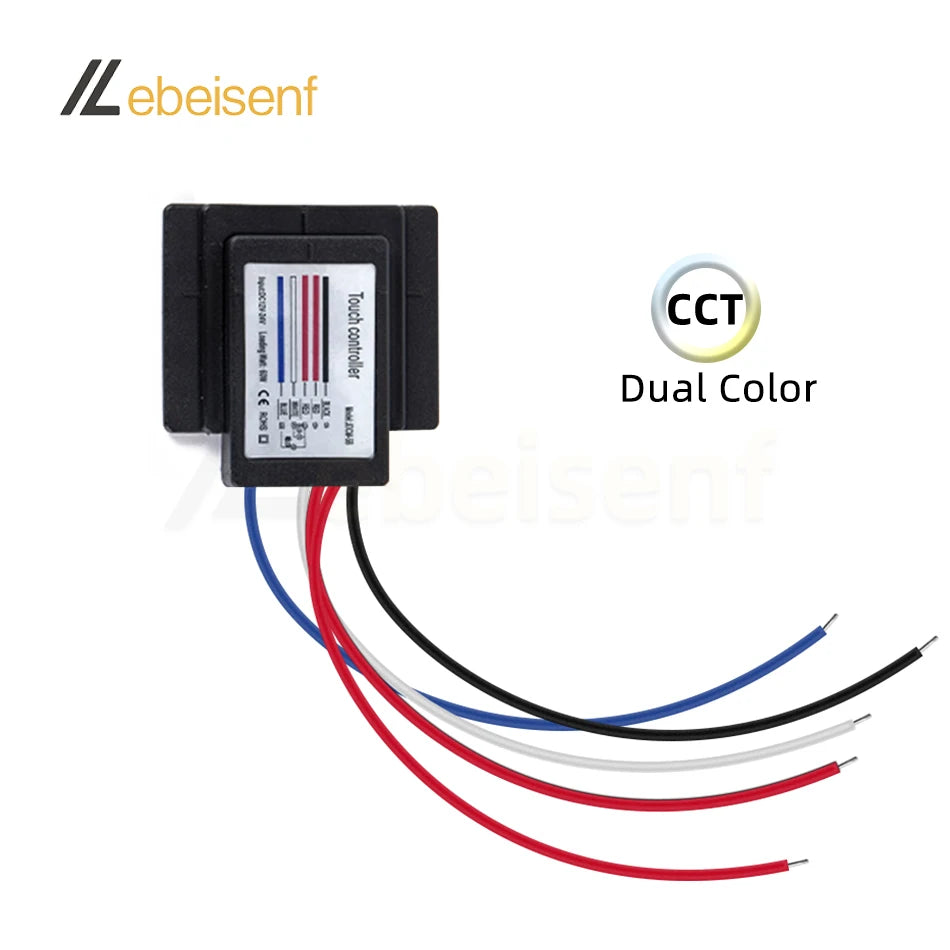

Bathroom Mirror Lamp Built-in Touch Sensor Switch DC 12V 24V 5A LED On/Off Dimmer Single Dual CCT Color Strip Light Controller
SPECIFICATIONS
Brand Name: lebeisenf
Certification: RoHS,CCC,ce,ROHS
Choice: yes
Controller size: L50 * W33.5 * H10 (mm)
Current: 5A
Features: Dual color adjustable, small size, sensitive sensing
Function: On/Off, color temperature adjustment(only 2CH), brightness adjustment
Hanging board size: L46 * W56.7 * H5 (mm)
Item Type: SWITCHES
Material: Plastic
Model Number: MR-CM801S
Origin: Mainland China
Output channel: 1CH or 2CH
Output current: Max.5A
Output power: 12V<60W; 24V<120W
Output signal: constant voltage PWM signal
Product Name: LED Mirror Touch Dimmer
Shell material: Plastic
Support mirror thickness: ≤ 5mm glass/acrylic/mirror
Switch Type: Touch On/Off Switch
Voltage: DC 12V 24V
Warranty: 1 year
Wire length: 15mm
semi_Choice: yes
3-5mm Mirror Light Touch Single / Dual Color Dimming Controller DC12-24V 5A
Product Features：

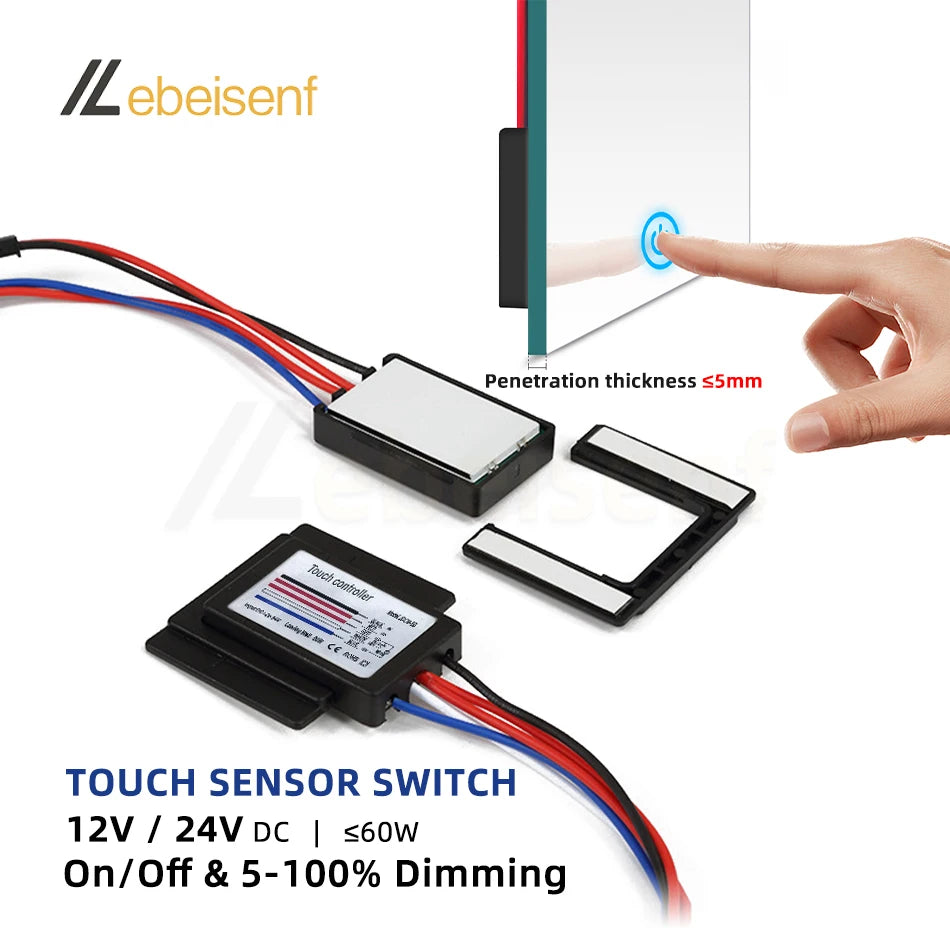

The mirror touch switch is a smart mirror touchsensor switch specially designed for all types of bathroom smart light mirrors, LED light mirrors (mirror cabinets and other products) This product has beautiful appearance, releasable performance, and installation convention, slimsize. sensitive touch. etc. suitable for touchsensing control on the surface of variable mirrorlamps or other glass, plastic, ceramic or artificiastone materials
Product specifications:
●. Product Name：LED Mirror Touch Dimmer
●. Voltage：DC 12V 24V
●. Output current：Max.5A
●. Output channel：1CH or 2CH
●. Output power：12V<60W; 24V<120W
●. Output signal：constant voltage PWM signal

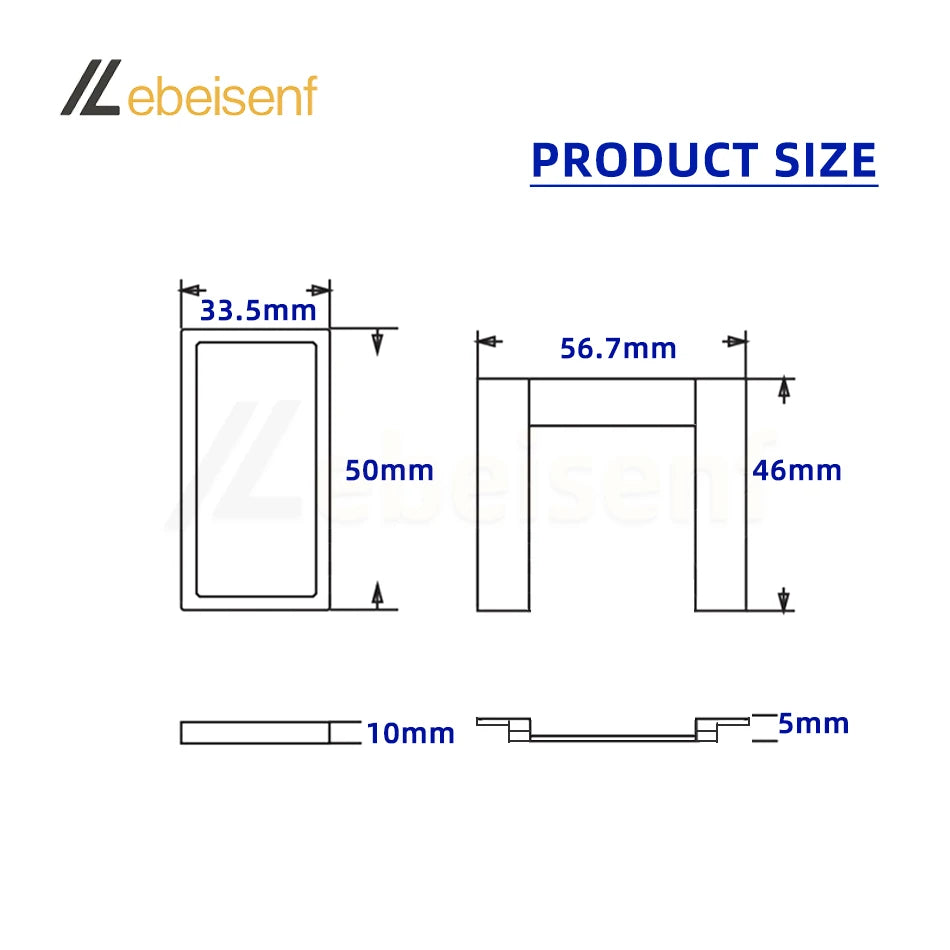

●. Controller size：L50 * W33.5 * H10 (mm)
●. Hanging board size：L46 * W56.7 * H5 (mm)
●. Wire length：15mm
●. Shell material：Plastic
● Support mirror thickness: 2-10 mm glass/acrylic/mirror (recommended ≤ 5mm)

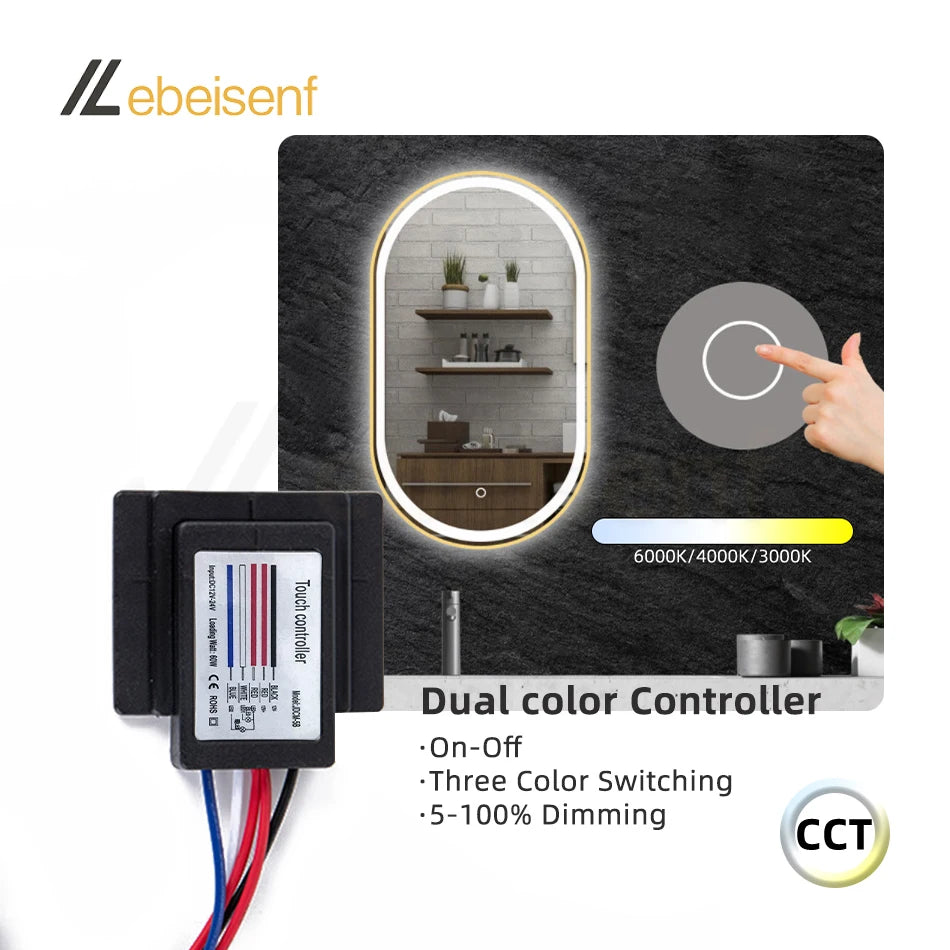

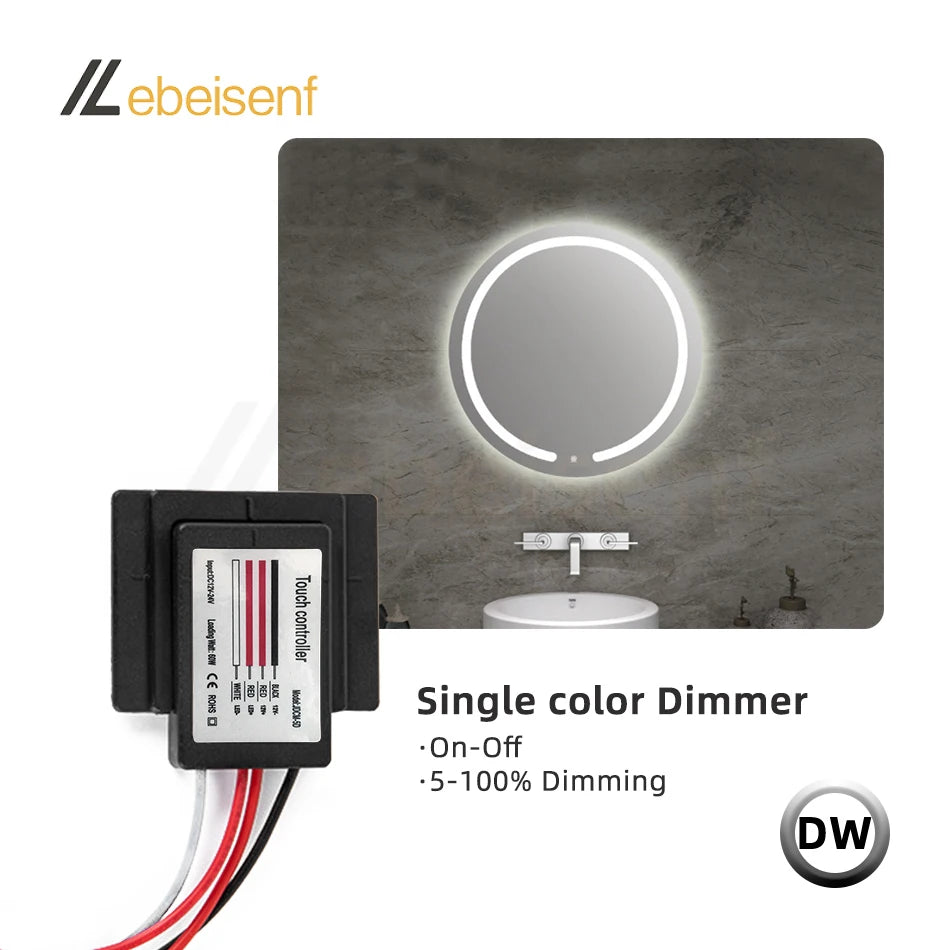

●. Function：On/Off, color temperature adjustment(only 2CH), brightness adjustment
Packaging list:
1 * Mirror dimmer
1 * Hanging board

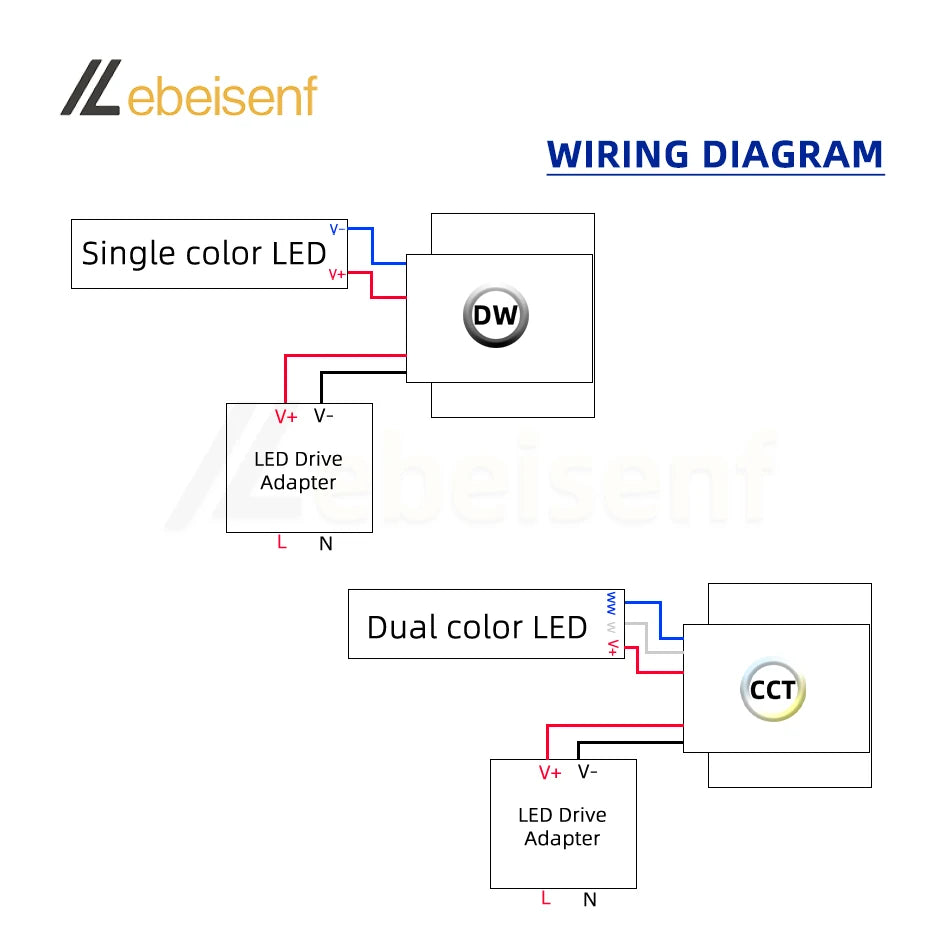

Voltage instructions
Please choose the power supply of the same voltage according to the voltage of LED lights. Not the controller

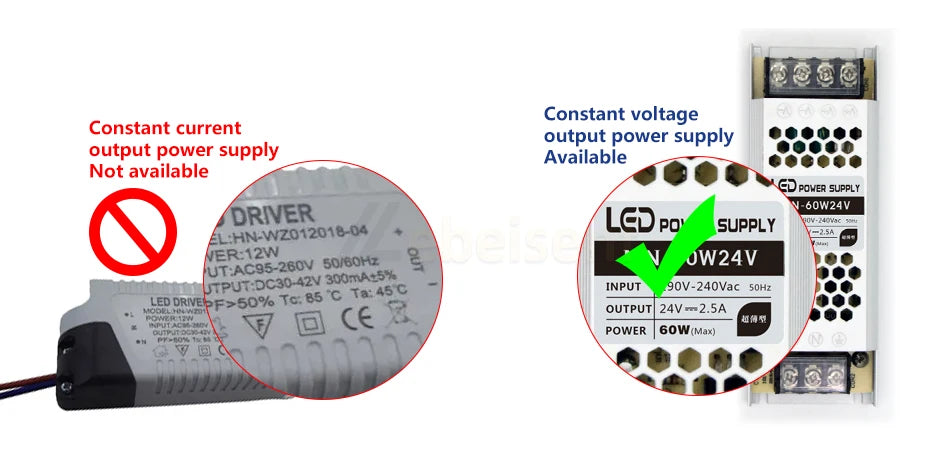

Note: Please use a constant voltage drive power supply to connect to the controller (Constant current power supply cannot be used to avoid damaging the controller)
